Vidhya Arvind, Rajasekhar Ummadisetty, Joey Lynch, Vinay Chella
At Netflix our capability to ship seamless, high-quality, streaming experiences to tens of millions of customers hinges on sturdy, world backend infrastructure. Central to this infrastructure is our use of a number of on-line distributed databases akin to Apache Cassandra, a NoSQL database identified for its excessive availability and scalability. Cassandra serves because the spine for a various array of use circumstances inside Netflix, starting from consumer sign-ups and storing viewing histories to supporting real-time analytics and stay streaming.
Over time as new key-value databases have been launched and repair house owners launched new use circumstances, we encountered quite a few challenges with datastore misuse. Firstly, builders struggled to motive about consistency, sturdiness and efficiency on this complicated world deployment throughout a number of shops. Second, builders needed to continuously re-learn new knowledge modeling practices and customary but important knowledge entry patterns. These embrace challenges with tail latency and idempotency, managing “extensive” partitions with many rows, dealing with single massive “fats” columns, and sluggish response pagination. Moreover, the tight coupling with a number of native database APIs — APIs that frequently evolve and generally introduce backward-incompatible modifications — resulted in org-wide engineering efforts to keep up and optimize our microservice’s knowledge entry.
To beat these challenges, we developed a holistic strategy that builds upon our Information Gateway Platform. This strategy led to the creation of a number of foundational abstraction providers, probably the most mature of which is our Key-Worth (KV) Information Abstraction Layer (DAL). This abstraction simplifies knowledge entry, enhances the reliability of our infrastructure, and allows us to assist the broad spectrum of use circumstances that Netflix calls for with minimal developer effort.
On this publish, we dive deep into how Netflix’s KV abstraction works, the architectural rules guiding its design, the challenges we confronted in scaling various use circumstances, and the technical improvements which have allowed us to attain the efficiency and reliability required by Netflix’s world operations.
The KV knowledge abstraction service was launched to unravel the persistent challenges we confronted with knowledge entry patterns in our distributed databases. Our purpose was to construct a flexible and environment friendly knowledge storage answer that would deal with all kinds of use circumstances, starting from the best hashmaps to extra complicated knowledge buildings, all whereas making certain excessive availability, tunable consistency, and low latency.
Information Mannequin
At its core, the KV abstraction is constructed round a two-level map structure. The primary degree is a hashed string ID (the first key), and the second degree is a sorted map of a key-value pair of bytes. This mannequin helps each easy and complicated knowledge fashions, balancing flexibility and effectivity.
HashMap<String, SortedMap<Bytes, Bytes>>For complicated knowledge fashions akin to structured Information or time-ordered Occasions, this two-level strategy handles hierarchical buildings successfully, permitting associated knowledge to be retrieved collectively. For less complicated use circumstances, it additionally represents flat key-value Maps (e.g. id → {"" → worth}) or named Units (e.g.id → {key → ""}). This adaptability permits the KV abstraction for use in lots of of various use circumstances, making it a flexible answer for managing each easy and complicated knowledge fashions in large-scale infrastructures like Netflix.

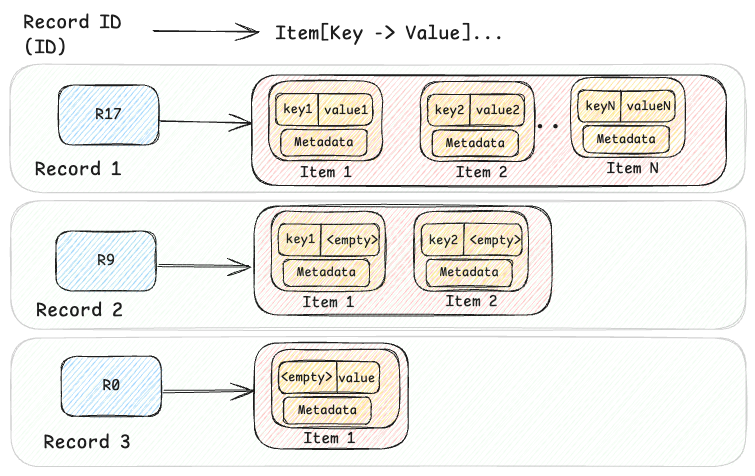

The KV knowledge may be visualized at a excessive degree, as proven within the diagram beneath, the place three information are proven.
message Merchandise (
Bytes key,
Bytes worth,
Metadata metadata,
Integer chunk
)Database Agnostic Abstraction
The KV abstraction is designed to cover the implementation particulars of the underlying database, providing a constant interface to software builders whatever the optimum storage system for that use case. Whereas Cassandra is one instance, the abstraction works with a number of knowledge shops like EVCache, DynamoDB, RocksDB, and many others…
For instance, when carried out with Cassandra, the abstraction leverages Cassandra’s partitioning and clustering capabilities. The report ID acts because the partition key, and the merchandise key because the clustering column:
The corresponding Information Definition Language (DDL) for this construction in Cassandra is:
CREATE TABLE IF NOT EXISTS <ns>.<desk> (
id textual content,
key blob,
worth blob,
value_metadata blob,PRIMARY KEY (id, key))
WITH CLUSTERING ORDER BY (key <ASC|DESC>)
Namespace: Logical and Bodily Configuration
A namespace defines the place and the way knowledge is saved, offering logical and bodily separation whereas abstracting the underlying storage programs. It additionally serves as central configuration of entry patterns akin to consistency or latency targets. Every namespace could use totally different backends: Cassandra, EVCache, or combos of a number of. This flexibility permits our Information Platform to route totally different use circumstances to probably the most appropriate storage system primarily based on efficiency, sturdiness, and consistency wants. Builders simply present their knowledge drawback reasonably than a database answer!
On this instance configuration, the ngsegment namespace is backed by each a Cassandra cluster and an EVCache caching layer, permitting for extremely sturdy persistent storage and lower-latency level reads.
"persistence_configuration":[
{
"id":"PRIMARY_STORAGE",
"physical_storage": {
"type":"CASSANDRA",
"cluster":"cassandra_kv_ngsegment",
"dataset":"ngsegment",
"table":"ngsegment",
"regions": ["us-east-1"],
"config": {
"consistency_scope": "LOCAL",
"consistency_target": "READ_YOUR_WRITES"
}
}
},
{
"id":"CACHE",
"physical_storage": {
"sort":"CACHE",
"cluster":"evcache_kv_ngsegment"
},
"config": {
"default_cache_ttl": 180s
}
}
]
To assist various use-cases, the KV abstraction offers 4 primary CRUD APIs:
PutItems — Write a number of Gadgets to a Report
The PutItems API is an upsert operation, it could actually insert new knowledge or replace present knowledge within the two-level map construction.
message PutItemRequest (
IdempotencyToken idempotency_token,
string namespace,
string id,
Record<Merchandise> objects
)As you may see, the request contains the namespace, Report ID, a number of objects, and an idempotency token to make sure retries of the identical write are protected. Chunked knowledge may be written by staging chunks after which committing them with acceptable metadata (e.g. variety of chunks).
GetItems — Learn a number of Gadgets from a Report
The GetItemsAPI offers a structured and adaptive technique to fetch knowledge utilizing ID, predicates, and choice mechanisms. This strategy balances the necessity to retrieve massive volumes of information whereas assembly stringent Service Stage Targets (SLOs) for efficiency and reliability.
message GetItemsRequest (
String namespace,
String id,
Predicate predicate,
Choice choice,
Map<String, Struct> indicators
)The GetItemsRequest contains a number of key parameters:
- Namespace: Specifies the logical dataset or desk
- Id: Identifies the entry within the top-level HashMap
- Predicate: Filters the matching objects and may retrieve all objects (
match_all), particular objects (match_keys), or a spread (match_range) - Choice: Narrows returned responses for instance
page_size_bytesfor pagination,item_limitfor limiting the entire variety of objects throughout pages andembrace/excludeto incorporate or exclude massive values from responses - Indicators: Supplies in-band signaling to point consumer capabilities, akin to supporting consumer compression or chunking.
The GetItemResponse message accommodates the matching knowledge:
message GetItemResponse (
Record<Merchandise> objects,
Optionally available<String> next_page_token
)- Gadgets: A listing of retrieved objects primarily based on the
PredicateandChoiceoutlined within the request. - Subsequent Web page Token: An non-obligatory token indicating the place for subsequent reads if wanted, important for dealing with massive knowledge units throughout a number of requests. Pagination is a important element for effectively managing knowledge retrieval, particularly when coping with massive datasets that would exceed typical response measurement limits.
DeleteItems — Delete a number of Gadgets from a Report
The DeleteItems API offers versatile choices for eradicating knowledge, together with record-level, item-level, and vary deletes — all whereas supporting idempotency.
message DeleteItemsRequest (
IdempotencyToken idempotency_token,
String namespace,
String id,
Predicate predicate
)
Identical to within the GetItems API, the Predicate permits a number of Gadgets to be addressed directly:
- Report-Stage Deletes (match_all): Removes the complete report in fixed latency whatever the variety of objects within the report.
- Merchandise-Vary Deletes (match_range): This deletes a spread of things inside a Report. Helpful for maintaining “n-newest” or prefix path deletion.
- Merchandise-Stage Deletes (match_keys): Deletes a number of particular person objects.
Some storage engines (any retailer which defers true deletion) akin to Cassandra wrestle with excessive volumes of deletes on account of tombstone and compaction overhead. Key-Worth optimizes each report and vary deletes to generate a single tombstone for the operation — you may be taught extra about tombstones in About Deletes and Tombstones.
Merchandise-level deletes create many tombstones however KV hides that storage engine complexity through TTL-based deletes with jitter. As a substitute of instant deletion, merchandise metadata is up to date as expired with randomly jittered TTL utilized to stagger deletions. This system maintains learn pagination protections. Whereas this doesn’t utterly remedy the issue it reduces load spikes and helps keep constant efficiency whereas compaction catches up. These methods assist keep system efficiency, scale back learn overhead, and meet SLOs by minimizing the influence of deletes.
Complicated Mutate and Scan APIs
Past easy CRUD on single Information, KV additionally helps complicated multi-item and multi-record mutations and scans through MutateItems and ScanItems APIs. PutItems additionally helps atomic writes of enormous blob knowledge inside a single Merchandise through a chunked protocol. These complicated APIs require cautious consideration to make sure predictable linear low-latency and we are going to share particulars on their implementation in a future publish.
Idempotency to struggle tail latencies
To make sure knowledge integrity the PutItems and DeleteItems APIs use idempotency tokens, which uniquely establish every mutative operation and assure that operations are logically executed so as, even when hedged or retried for latency causes. That is particularly essential in last-write-wins databases like Cassandra, the place making certain the right order and de-duplication of requests is important.
Within the Key-Worth abstraction, idempotency tokens include a era timestamp and random nonce token. Both or each could also be required by backing storage engines to de-duplicate mutations.
message IdempotencyToken (
Timestamp generation_time,
String token
)At Netflix, client-generated monotonic tokens are most popular on account of their reliability, particularly in environments the place community delays may influence server-side token era. This combines a consumer offered monotonic generation_time timestamp with a 128 bit random UUID token. Though clock-based token era can undergo from clock skew, our assessments on EC2 Nitro situations present drift is minimal (underneath 1 millisecond). In some circumstances that require stronger ordering, regionally distinctive tokens may be generated utilizing instruments like Zookeeper, or globally distinctive tokens akin to a transaction IDs can be utilized.
The next graphs illustrate the noticed clock skew on our Cassandra fleet, suggesting the protection of this method on fashionable cloud VMs with direct entry to high-quality clocks. To additional keep security, KV servers reject writes bearing tokens with massive drift each stopping silent write discard (write has timestamp far in previous) and immutable doomstones (write has a timestamp far in future) in storage engines susceptible to these.
Dealing with Giant Information by way of Chunking
Key-Worth can also be designed to effectively deal with massive blobs, a typical problem for conventional key-value shops. Databases typically face limitations on the quantity of information that may be saved per key or partition. To deal with these constraints, KV makes use of clear chunking to handle massive knowledge effectively.
For objects smaller than 1 MiB, knowledge is saved instantly in the primary backing storage (e.g. Cassandra), making certain quick and environment friendly entry. Nonetheless, for bigger objects, solely the id, key, and metadata are saved within the major storage, whereas the precise knowledge is cut up into smaller chunks and saved individually in chunk storage. This chunk storage may also be Cassandra however with a distinct partitioning scheme optimized for dealing with massive values. The idempotency token ties all these writes collectively into one atomic operation.
By splitting massive objects into chunks, we make sure that latency scales linearly with the scale of the information, making the system each predictable and environment friendly. A future weblog publish will describe the chunking structure in additional element, together with its intricacies and optimization methods.
Consumer-Facet Compression
The KV abstraction leverages client-side payload compression to optimize efficiency, particularly for giant knowledge transfers. Whereas many databases supply server-side compression, dealing with compression on the consumer facet reduces costly server CPU utilization, community bandwidth, and disk I/O. In one among our deployments, which helps energy Netflix’s search, enabling client-side compression diminished payload sizes by 75%, considerably enhancing price effectivity.
Smarter Pagination
We selected payload measurement in bytes because the restrict per response web page reasonably than the variety of objects as a result of it permits us to supply predictable operation SLOs. For example, we will present a single-digit millisecond SLO on a 2 MiB web page learn. Conversely, utilizing the variety of objects per web page because the restrict would lead to unpredictable latencies on account of important variations in merchandise measurement. A request for 10 objects per web page may lead to vastly totally different latencies if every merchandise was 1 KiB versus 1 MiB.
Utilizing bytes as a restrict poses challenges as few backing shops assist byte-based pagination; most knowledge shops use the variety of outcomes e.g. DynamoDB and Cassandra restrict by variety of objects or rows. To deal with this, we use a static restrict for the preliminary queries to the backing retailer, question with this restrict, and course of the outcomes. If extra knowledge is required to satisfy the byte restrict, extra queries are executed till the restrict is met, the surplus result’s discarded and a web page token is generated.
This static restrict can result in inefficiencies, one massive merchandise within the end result could trigger us to discard many outcomes, whereas small objects could require a number of iterations to fill a web page, leading to learn amplification. To mitigate these points, we carried out adaptive pagination which dynamically tunes the bounds primarily based on noticed knowledge.
Adaptive Pagination
When an preliminary request is made, a question is executed within the storage engine, and the outcomes are retrieved. As the patron processes these outcomes, the system tracks the variety of objects consumed and the entire measurement used. This knowledge helps calculate an approximate merchandise measurement, which is saved within the web page token. For subsequent web page requests, this saved info permits the server to use the suitable limits to the underlying storage, decreasing pointless work and minimizing learn amplification.
Whereas this technique is efficient for follow-up web page requests, what occurs with the preliminary request? Along with storing merchandise measurement info within the web page token, the server additionally estimates the typical merchandise measurement for a given namespace and caches it regionally. This cached estimate helps the server set a extra optimum restrict on the backing retailer for the preliminary request, enhancing effectivity. The server constantly adjusts this restrict primarily based on latest question patterns or different elements to maintain it correct. For subsequent pages, the server makes use of each the cached knowledge and the knowledge within the web page token to fine-tune the bounds.
Along with adaptive pagination, a mechanism is in place to ship a response early if the server detects that processing the request is susceptible to exceeding the request’s latency SLO.
For instance, allow us to assume a consumer submits a GetItems request with a per-page restrict of two MiB and a most end-to-end latency restrict of 500ms. Whereas processing this request, the server retrieves knowledge from the backing retailer. This specific report has 1000’s of small objects so it could usually take longer than the 500ms SLO to assemble the total web page of information. If this occurs, the consumer would obtain an SLO violation error, inflicting the request to fail though there’s nothing distinctive. To stop this, the server tracks the elapsed time whereas fetching knowledge. If it determines that persevering with to retrieve extra knowledge would possibly breach the SLO, the server will cease processing additional outcomes and return a response with a pagination token.
This strategy ensures that requests are processed throughout the SLO, even when the total web page measurement isn’t met, giving purchasers predictable progress. Moreover, if the consumer is a gRPC server with correct deadlines, the consumer is wise sufficient to not situation additional requests, decreasing ineffective work.
If you wish to know extra, the How Netflix Ensures Extremely-Dependable On-line Stateful Methods article talks in additional element about these and plenty of different strategies.
Signaling
KV makes use of in-band messaging we name signaling that enables the dynamic configuration of the consumer and allows it to speak its capabilities to the server. This ensures that configuration settings and tuning parameters may be exchanged seamlessly between the consumer and server. With out signaling, the consumer would want static configuration — requiring a redeployment for every change — or, with dynamic configuration, would require coordination with the consumer staff.
For server-side indicators, when the consumer is initialized, it sends a handshake to the server. The server responds again with indicators, akin to goal or max latency SLOs, permitting the consumer to dynamically alter timeouts and hedging insurance policies. Handshakes are then made periodically within the background to maintain the configuration present. For client-communicated indicators, the consumer, together with every request, communicates its capabilities, akin to whether or not it could actually deal with compression, chunking, and different options.
The KV abstraction powers a number of key Netflix use circumstances, together with:
- Streaming Metadata: Excessive-throughput, low-latency entry to streaming metadata, making certain personalised content material supply in real-time.
- Person Profiles: Environment friendly storage and retrieval of consumer preferences and historical past, enabling seamless, personalised experiences throughout units.
- Messaging: Storage and retrieval of push registry for messaging wants, enabling the tens of millions of requests to move by way of.
- Actual-Time Analytics: This persists large-scale impression and offers insights into consumer conduct and system efficiency, transferring knowledge from offline to on-line and vice versa.
Wanting ahead, we plan to reinforce the KV abstraction with:
- Lifecycle Administration: Positive-grained management over knowledge retention and deletion.
- Summarization: Strategies to enhance retrieval effectivity by summarizing information with many objects into fewer backing rows.
- New Storage Engines: Integration with extra storage programs to assist new use circumstances.
- Dictionary Compression: Additional decreasing knowledge measurement whereas sustaining efficiency.
The Key-Worth service at Netflix is a versatile, cost-effective answer that helps a variety of information patterns and use circumstances, from low to excessive visitors situations, together with important Netflix streaming use-cases. The easy but sturdy design permits it to deal with various knowledge fashions like HashMaps, Units, Occasion storage, Lists, and Graphs. It abstracts the complexity of the underlying databases from our builders, which allows our software engineers to give attention to fixing enterprise issues as a substitute of changing into specialists in each storage engine and their distributed consistency fashions. As Netflix continues to innovate in on-line datastores, the KV abstraction stays a central element in managing knowledge effectively and reliably at scale, making certain a stable basis for future development.
